SPECTROSCOPY

Outburst of SDSS J080434.20+510349.2

This newly identified cataclysmic variable was first reported in outburst by E. Pavlenko 19:00 (UT) 4th March 2006

This animated gif shows an image of the region made 5th March compared with the POSSI (RED) DSS image of the same area

The magnitude in this image is approximately 12.8 CV

VC200L f6.4 SC3 modified webcam 110x 4.5sec

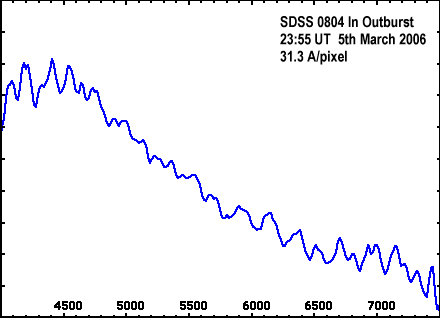

SPECTRUM



23:55 UT

5th March 2006

VC200L at f6.4

Star Analyser grating

SC3 modified webcam.

( 60x 20sec)

Corrected for instrument response
