SPECTROSCOPY

SS433

(A Work in Progress)

16th Aug 2004



VC200L at f6.3 + 1004x-JG camera 8 x 15sec



VC200L at f6.3 + 1004x-JG camera + 100 l/mm grating at 36 A/pixel 21x40sec

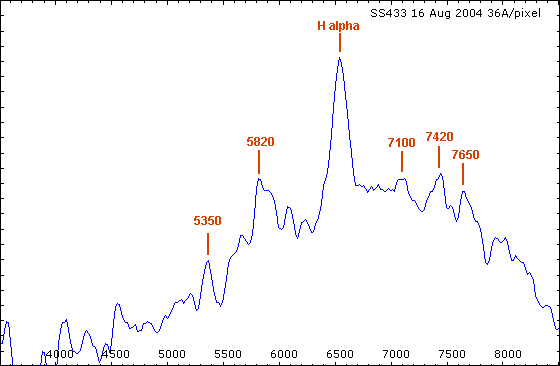

Although the Hydrogen Apha emmision line at the rest wavelength is clear, it is not obvious (which if any) of the other lines are from the jets of material thrown out at 25% of the speed of light and doppler shifted to red or blue.
