Computer control of the Alpy
Calibration Module via USB
using
an FTDI USB to UART module

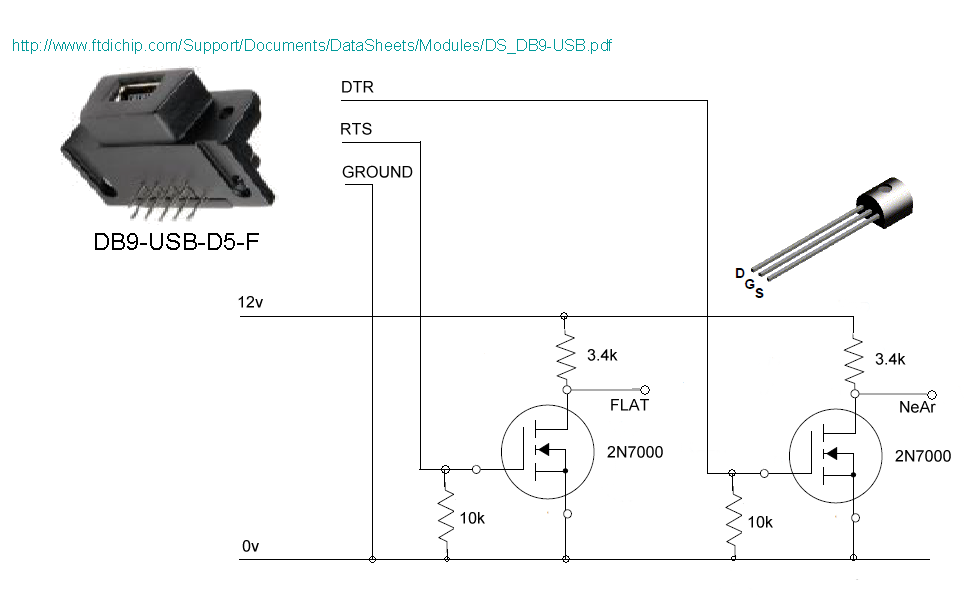

The serial link RTS and DTR lines from the USB to serial module are fed to the Flat and Calib remote control sockets via MOSFET switches which convert the 5v logic levels to ~ 0, 10V
This technique of using the RTS TDR lines is typically used by software to control DSLR shutters and long exposure modified webcams etc. The "Port Commander" function in K3CCD Tools is currently being used for control, though a bespoke program could be written.

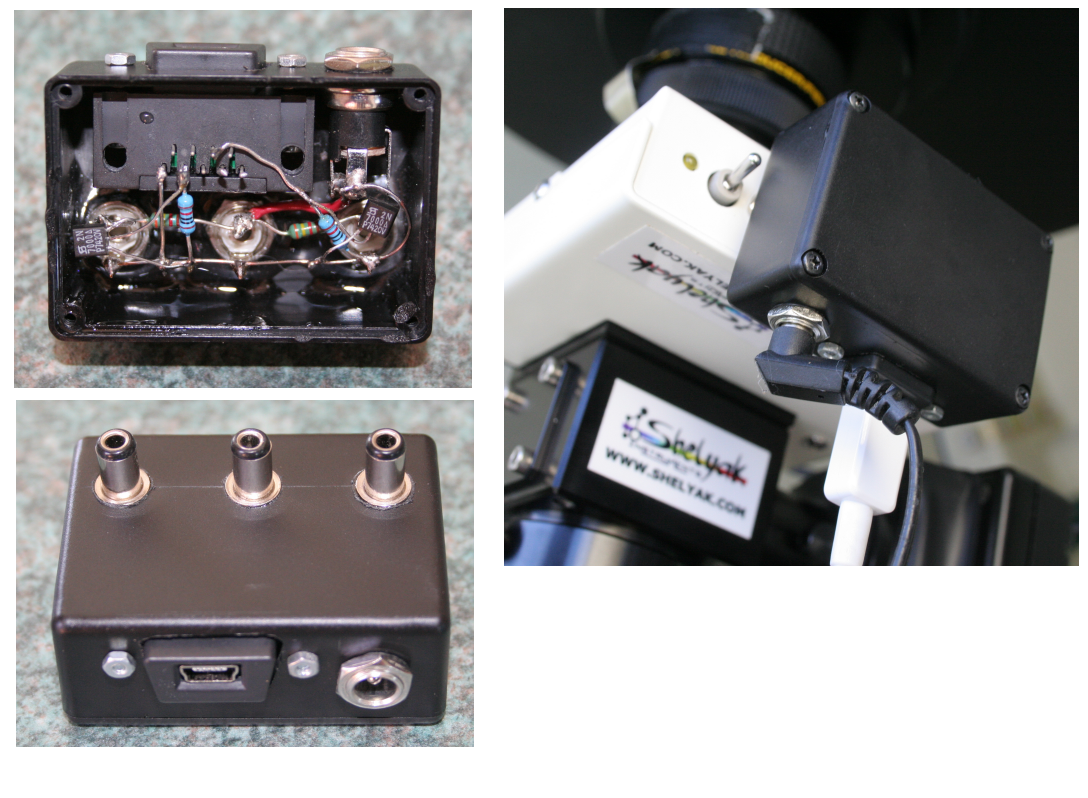

The components are housed in a small box which plugs
directly into the three Alpy Calibration module sockets
RL 31 July 2013
